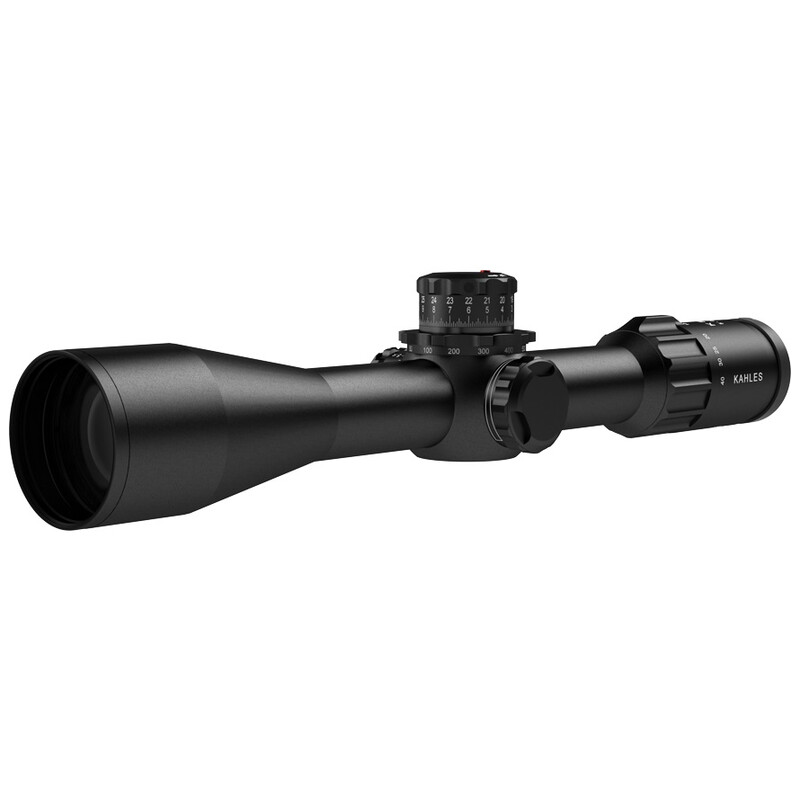

KAHLES K540i 5–40×56i / SKMR4+ / CCW / R

The KAHLES K540i 5–40×56i is a premium high-precision riflescope designed for sport shooting and extreme long-range applications. Its 5–40× magnification range and 56 mm objective lens provide a bright, clear and highly detailed image, even at extended distances.

The illuminated SKMR4+ reticle is positioned in the first focal plane (FFP), allowing its proportions and MRAD markings to remain consistent throughout the entire magnification range. The adjustment mechanism provides precise 0.1 MRAD clicks.

This version features a right-side windage turret (R) with counterclockwise adjustment (CCW). The patented TWIST GUARD system protects the windage turret against accidental movement.

Key specifications:

• Magnification: 5–40×
• Objective lens diameter: 56 mm
• Reticle: Illuminated SKMR4+
• Focal plane: First focal plane (FFP)
• Adjustment per click: 0.1 MRAD
• Parallax adjustment: 20 m to infinity
• Windage turret position: Right
• Adjustment direction: CCW
• Elevation adjustment range: 2.9 m/100 m
• Windage adjustment range: 1.2 m/100 m
• Main tube diameter: 36 mm
• Length: 408 mm
• Weight: approximately 1,110 g
• Turret protection: TWIST GUARD
• Mechanical zero stop: Yes
• Waterproof construction

The KAHLES K540i is an excellent choice for shooters who demand maximum magnification, outstanding optical quality, precise and repeatable adjustments, and reliable performance at extreme distances.
